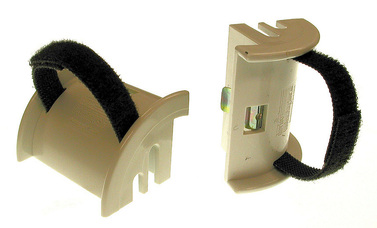

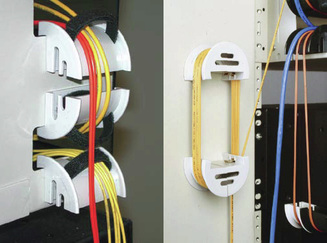

Fast-Drop™ - Bend Radius Control Module / Fiber Optic & Network Cable Management
Fiber Optic & Network Cable Bend Radius Control Module
Fast-Drop 1' Beige c/w; Hook & Loop Strap / PN; 321-1B-HL
Fast-Drop™ Bend Radius Control Modules provide the BICSI recommended minimum bend radius for fiber optic cables, assuring consistent data transmission. The Fast-Drop is molded of UL94 V-0 flame retardant, impact resistant polycarbonate and is rigid enough to withstand large bundle loads. NEBS compliant.
| Fast-Drop.pdf |
Hook & Loop Strap Ties
The Hook & Loop Strap cable management tie is a self gripping fastener that offers a neat and secure way to bundle cables and cords. The Hook and Loop Strap wraps around cables and latches on its opposing side for secure containment. The Hook and Loop Strap is made from UL94 flammability rated material.
Features and Benefits:
• RoHS compliant
• Flame retardant per UL94 V-2
• Burn resistant per MVSS 302
• Fire and smoke resistant per FAR 25.853F, part (a), (l), (i)
• Acceptance per NEC 300-22, paragraph (c) and (d)
• Load capacity: 18lbs
• Contact area: 0.73in2 (4.84cm2)
| Hook & Loop Strap.pdf |
Hook and Loop Strap for Wire & Cable Management
Pull-Mount™ - Polyester Cable Tie System
Pull-Mount™ - The Pull-Mount cable tie installs from the bottom of the panel. The high strength button head snaps fast and easily into a 3/8” (9.5mm) diameter hole inside a panel with a thickness range from 0.045” (1.1 mm) to 0.100” (2.5 mm). The cable tie loops around the cables to secure the bundle. The excess cable tie is pushed through the releasable latch mechanism and the retaining tabs to create a secure fit, eliminating the need to cut off excess.
| Pull-Mount.pdf |
Pull-Mount Cable Tie System

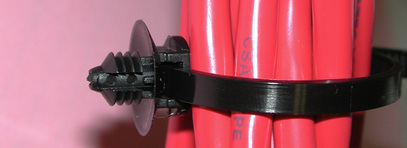

Push-Mount™ - UV Stabilized Nylon Cable Tie System
Push-Mount™ - the newest DFM/DFA assembly for managing cables. Push-Mount is diff erent than all other wire ties for a mounting device because of its innovative design. Its design delivers a “one-piece” assembly for quick snap-in mounting. To increase worker safety and cover edge burrs, Push-Mount’s low profi le head is trimmed at the end of the tie so it ‘nests’ out of the way.
| Push-Mount.pdf |
Push-Mount Nylon Cable Tie System - Low Profile
